More flexible configuration and stable performance, suitable for a wide range of application scenarios in multiple fields. Its super intelligent solution provides users with a convenient operating experience, meets diverse needs, and helps to enhance scientific research and production efficiency.
Ultimate Performance
• Flow Through Needle (FTN) mode saving injection time & sample usage and reduce contamination • Mobile phase pre-heating function increasing data reproducibility • Refrigerable automatic sampler prevent sample deterioration or decomposition
More flexible configuration and stable performance, suitable for a wide range of application scenarios in multiple fields. Its super intelligent solution provides users with a convenient operating experience, meets diverse needs, and helps to enhance scientific research and production efficiency.
Key Technology
Ultimate Performance
• Flow Through Needle (FTN) mode saving injection time & sample usage and reduce contamination • Mobile phase pre-heating function increasing data reproducibility • Refrigerable automatic sampler prevent sample deterioration or decomposition
Intelligent Solution
• Flow path monitoring sensor can keep velocity of flow sable • Touch controlled automatic door for sample tray • Intelligent mobile phase weighing system for monitoring of mobile phase consumption • Automatic positioning of NFC sample tray, avoid incorrect injection • Leakage sensor improves instruments stability • Sample injector monitoring window for observation of injection status • NFC chromatographic column automatic monitoring function simplifies the manual registration process of chromatographic
Column Information
Super Link
• Large volume column oven, installed on multiple chromatography columns • Flow path selection valve ensures high-precision multi flow path automation control, building multi-dimensional liquid
Chromatography Systems

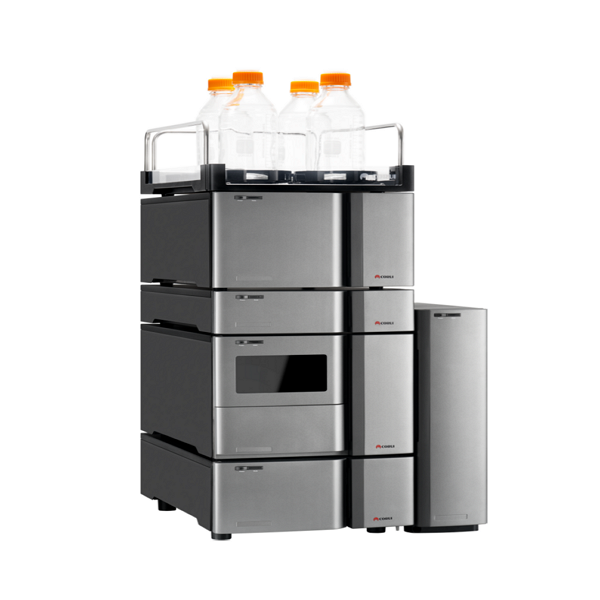

• SCO series HPLC system is ready equipped with: Refractive Index Detector (RID), Evaporative Light Scattering Detector (ELSD), UV or Diode Array Detector (UV&PDA), High Sensitivity Fluorescence Detector (FLD).
Pump
Series
Sco Series 8
Gradient type
Isocratic, GPC
Quaternary
Binary
Part Number
R9122E
R9121E
R9120E
Upper limited Pressure(psi)
8000
Pump Seal Wash
Standard
pH range
1-12.5
Degassing Lines
Optional, 1
channel
Standard, 4
channel
*Optional, 2
channel
Pump purge valve
Automatic
Standard: Manual
Optional:
Automatic
Standard: Manual
Optional:
Automatic
Number of slovents
1
1 to 4, in any
combination as
standard
4, in combination
of 2, A1 or A2 and
B1 or B2
Solvent selection valve
N/A
N/A
Standard, 2 valves
Dwell volume
N/A
≤ 500μ L
≤ 150μ L
Operating flow rate range
0.001-
4.500mL/min，
0.001 increment
settable
0.001-
4.500mL/min，
0.001 increment
settable
0.001-
8.000mL/min,
0.001mL/min
increments
settable
Flow accuracy
± 1.0%@0.5mL/min
Flow precision
≤ 0.06% RSD or ± 0.01 min SD, whichever is greater.
Gradient setting range
N/A
0-100%, minimum increment 0.1%
Composition accuracy
N/A
± 0.5%, with no change with backpressure (5%-95% mixing range)
Composition precision
N/A
≤ 0.25% RSD or ± 0.01 min SD
Pressure pulsation
≤ 1% or 50psi, whichever is greater.

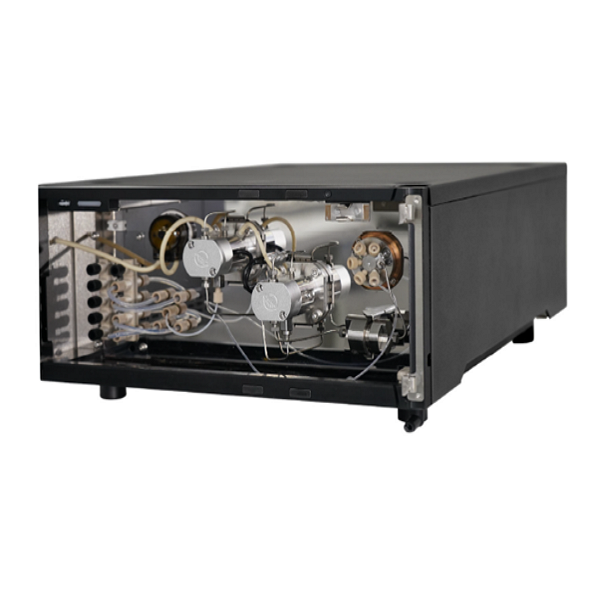

Quaternary Pump

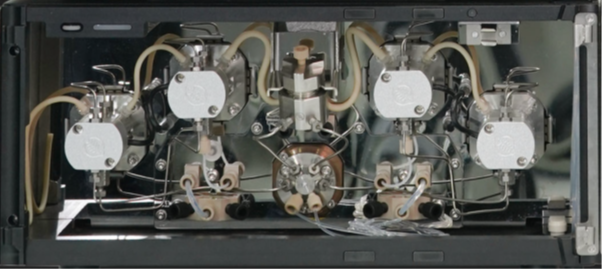

Binary Pump
*Cut out only machine photo from above photo, some white background came while taking screenshot

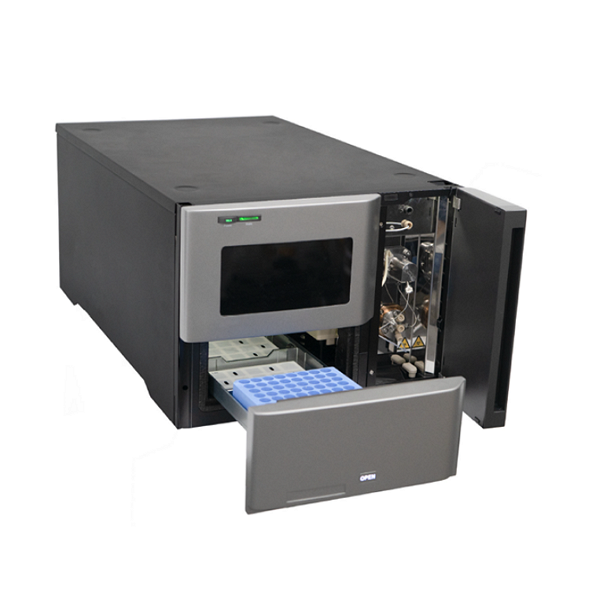

Autosampler
Series
Sco series 8
Part Number
R9210E
Upper limited Pressure(psi)
8000
Injection device
Metering Pump
pH range
1-12.5
Numbers of sample plates
Max: 3 plates
Types of sample plates
standard: 54×1.5/2mL vial holder
Maximum sample capacity
171 (3×54+9) 1.5/2mL vial
Injection mode
Flow through injection, needle-loading
Injection volume range
0.2-100μ L as standard
Injection volume accuracy
± 0.5μ L (50 μ L injection volume, 20 replicate injections)
Injection volume precision
≤ 0.25% RSD, 1μ L-25μ L injection volume, based on six replicate
Linearity
≥ 0.999
Sample carryover
≤ 0.0005% (caffeine, UV)
Injection cycle time
Typically, 15s, depending on injection volume
Injection needle wash
Standard: Single-solvent cleaning inner and outer walls of the needle are cleaned.
Sample compartment temperature
range
Ambient+5℃ to 40℃
Temperature accuracy
± 1℃
Temperature stability
± 1℃
*Cut out only machine photo from above photo, some white background came while taking screenshot
Column Oven
Column Oven
Sco Series
Placing type
Horizontal
Vertical
Part Number
R9300D
R9301D
Upper limited temperature (℃ )
90℃
Column capacity
2*150mm without pre-column and
active pre-heating unit or
2*100mm with pre-column or active
pre-heating unit
3*300mm or 6*100mm
Column compartment(s) heating
temperature range
Ambient+4℃ -90℃ , settable in 0.1 ℃ increments, the ambient
temperature is not lower than 20°C
Heating Time
≤ 20 min
Ambient to 60℃
Heating expansion kits
Optional, up to 120℃ , factory installed only.
Column Cooling
Natural Convection Cooling
Natural Convection Cooling as
standard, cooling module is
optional
Cooling module
Not Applicable
Optional, cool down to 4℃ , factory
installed only.
Column compartment(s) cooling
temperature range
To ambient temperature
To ambient temperature
Cooling Time
Depending on column heating
temperature.
Depending on column heating
temperature.
Column compartment(s)
temperature accuracy
± 0.5℃ at sensor
Column compartment(s)
temperature stability
± 0.3℃ at sensor
Mobile phase preheating
Passive pre-heating as standard,
active pre-heating is optional, 2
sets max.
Passive pre-heating as standard,
active pre-heating is optional, 3
sets max.
Switching valves
Optional, 8000psi or 10000psi, 1 valve max
Optional, 8000psi or 10000psi, 2 valves max

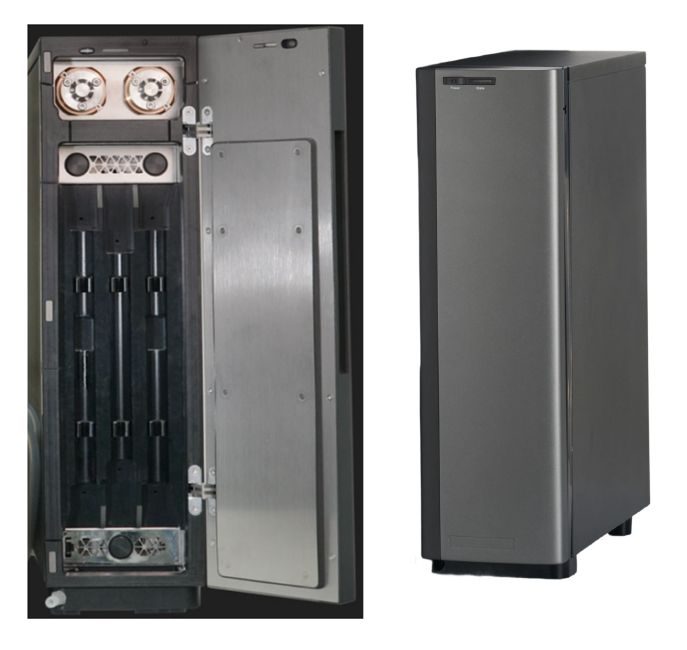

Horizontal Column Oven and Vertical Column Oven

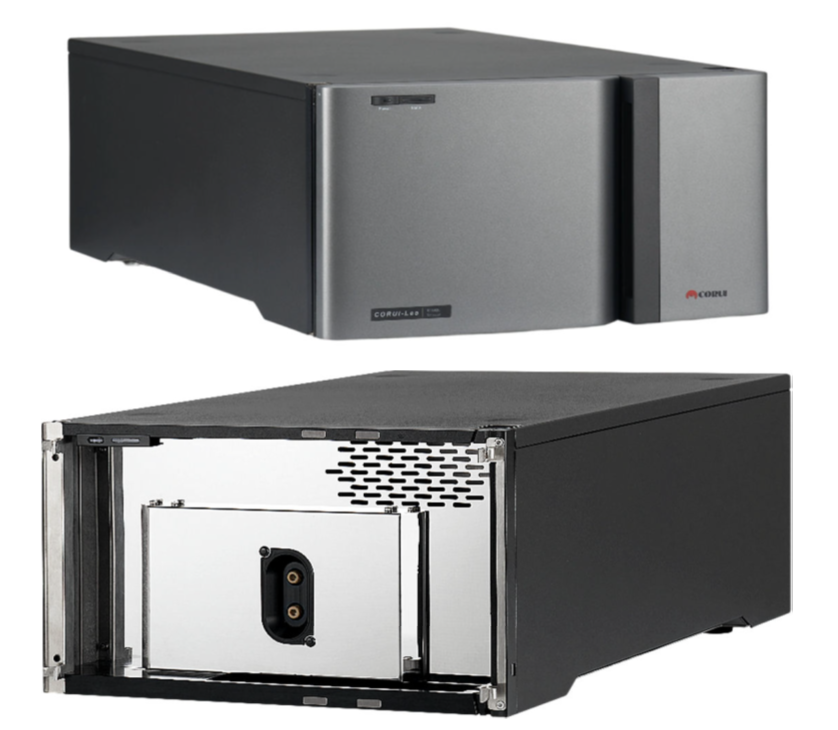

UV Detector

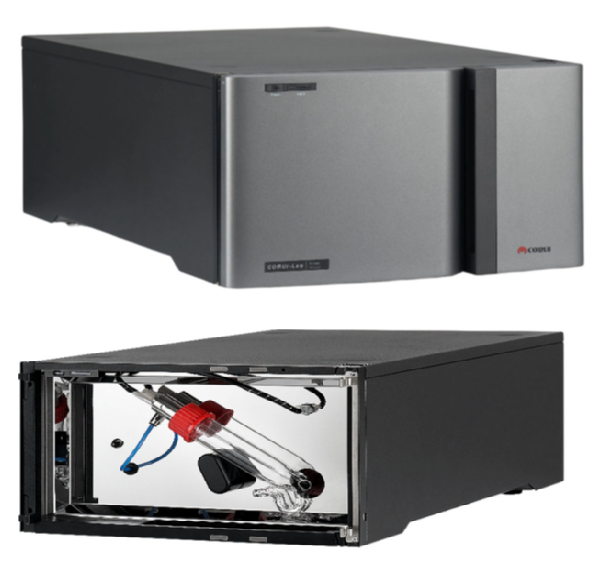

PDA Detector

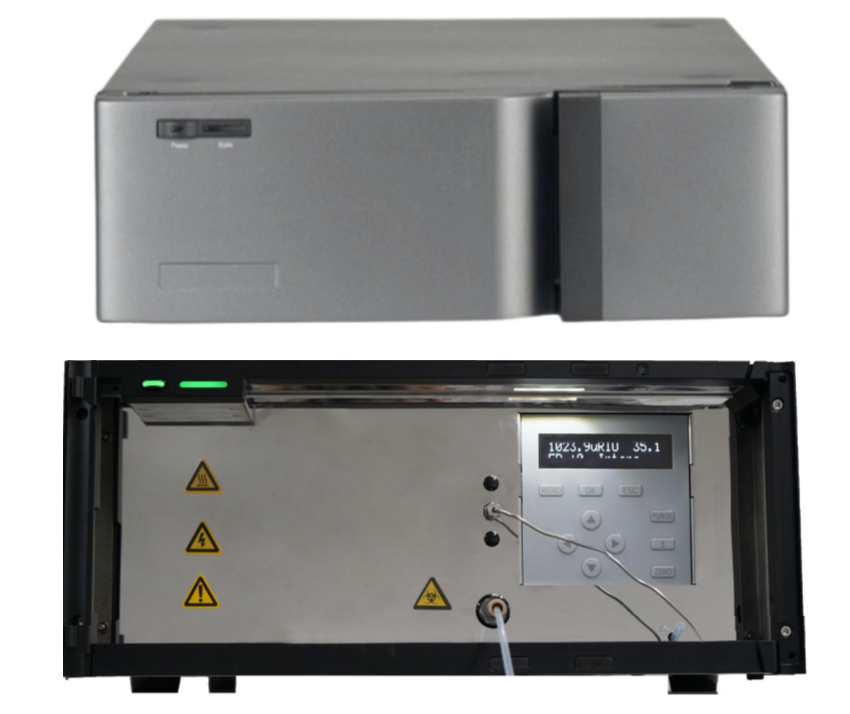

RI Detector

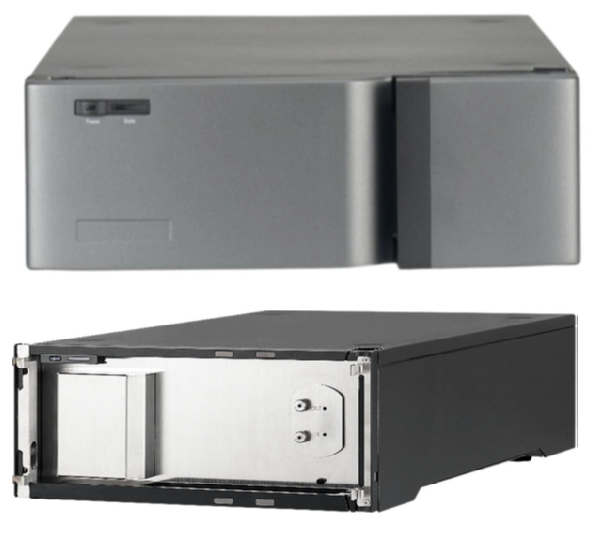

ELS Detector
