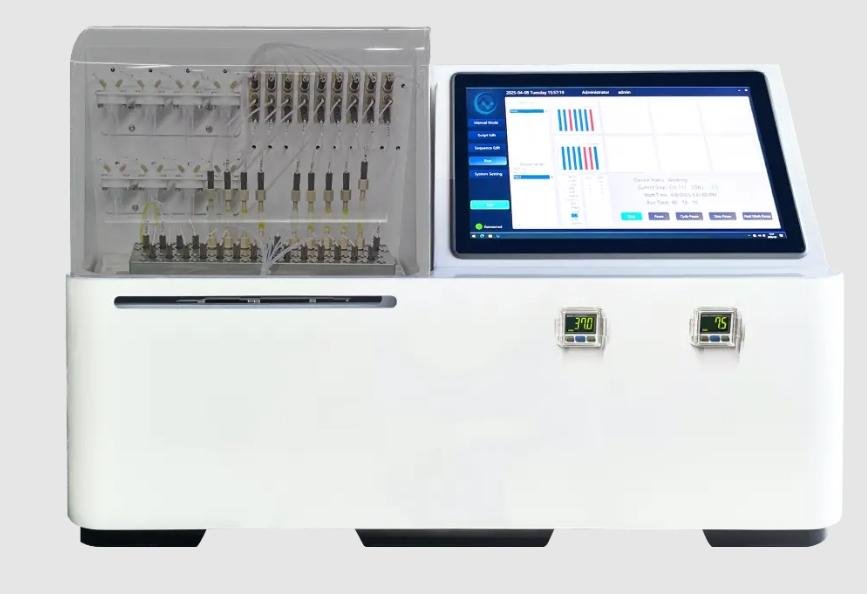

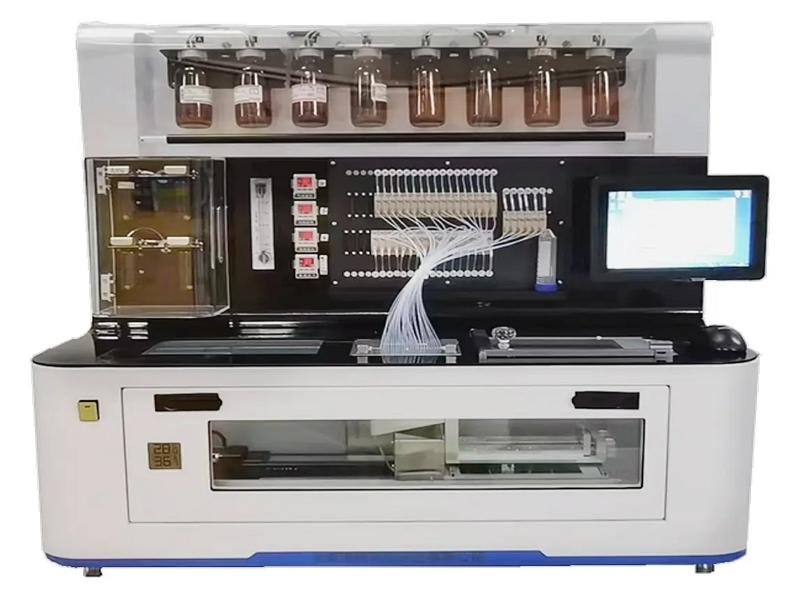

Bio-Oligo synthesizer machine is an efficient, rapid and reliable device for oligonucleotide synthesis independently developed by Chromega Instruments Pvt Ltd.
Nowadays, the series is available to customers on two main scales: Bio-Oligo laboratory nucleic acid synthesizer machine and Bio-Oligo Pro 400 pilot scale Bio-Oligo nucleic acid synthesizer machine. To meet different needs of customers from laboratory to pilot scale-up.
Environmental friendly. Vacuum diaphragm pump adopts vacuum system to avoid pollution.
Long service time of valves, the precision can reach 5ul.
Low maintenance cost and perfect performance.
LCD monitors.
Simple Independent operating system software with log function.
You can set up the synthesis program by yourself, variety of synthesis scales are available; in addition, Probe, thio, primer can be synthesized at the same time.
The software is also easy to set up, the starting base for synthesis can be selected according to the nature of the carrier base, and the starting position for synthesis can also be selected.
 |  |  |
 |  |  |
 |  |  |
Synthesized primers can be used for sequencing reactions, SNP loci, detection kits, hybridization and reverse transcription, polymerase chain reaction (PCR), etc. You can also synthesis other primers with different programs.
Parameter | Details |
|---|---|
Synthesis scale | 25nmol–300µmol |
Cycle time | 4–6 minutes |
Amidite bottle | 12 (standard), it can expand to 20 sets |
Reagent bottle | 9 sets |
Reagent position | Single (Standard), it can expand to double bottle |
Waste liquid discharge | Negative pressure with Vacuum pump |
Required gas | Nitrogen or Argon |
Optional | Trityl Monitor |
Power | Single-phase 220V |
Working Temperature | 25°C ± 4°C |
Relative Humidity | Within 45% |
Persistence | Operate continuously and normally |
Computer | Dell |
Monitor | LCD |
Weight | 86 kg |
Warranty | 1 year |
Parameter | Details |
|---|---|
Channel | 12 |
Synthesis product | DNA/RNA Fluorescent labels, probes, thio, etc. |
Synthesis mode | Reagents are injected separately |
Synthesis cycle (20mer) | 12 primers of 20bp within 2.5 hours |
Cycle time | 6–8 minutes |
Synthesis scale | 25nmol–300µmol |
Coupling rate | >99% |
Max length | 120bp |
Product carrying | Synthesis columns |
Waste liquid discharge | Vacuum pump with negative pressure extraction |
Amidite / reagent punch-in | Reagents are injected separately |
Amidite / reagent drive | Protective gas press-out |
Amidite bottle | 12 sets (standard), 20 sets (max expand) |
Reagent bottle | 9 sets |
Reagent bottle position | Single bottle (standard), it can expand to two bottles |
Size of reagent bottle | 450ml / 4L and other size |
Synthesis of annexation bases | Automatic synthesis of mix amidite without manual reagent configuration |
System | Windows 7 |
Data import | Automatic load of sequences via Excel sheets |
Reagent versatility | Universal |
Gas | Nitrogen or Argon |
Exterior colour | Frosted Black |
Size of reagent tube | OD1/8", ID1/16" |
Size of Phosphoramidite tube | OD1/16", ID 0.8mm |
Dimension | 910mm × 650mm × 540mm |
Gross size | 1200mm × 700mm × 600mm |
