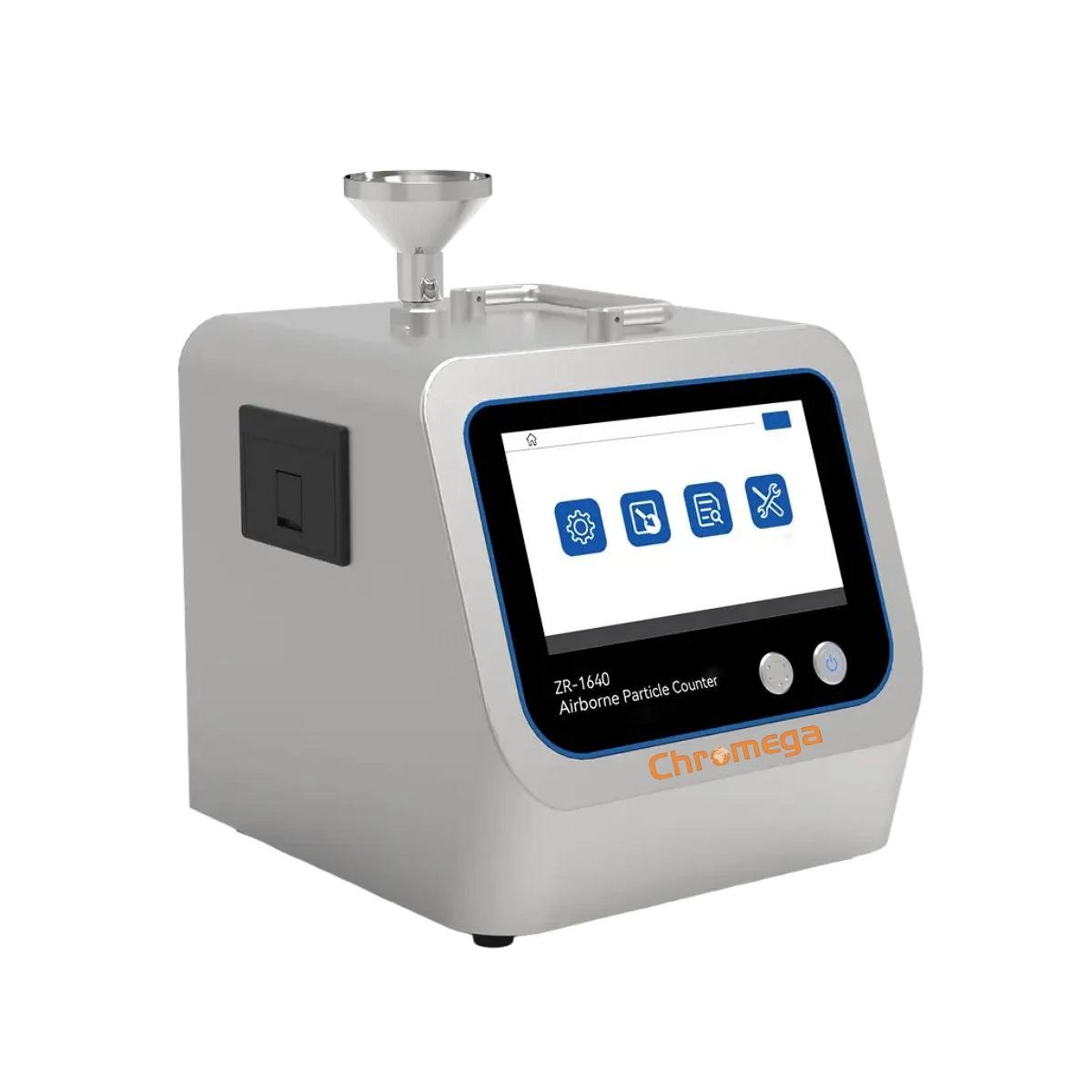

Airborne Particle Counter 3.53CFM CI-1640

ZR-1640 Airborne Particle Counter is a portable 6 channel particle counter that uses the principle of light scattering to test the number of airborne particles with sizes of 0.3, 0.5, 1.0, 3.0, 5.0, and 10.0μm. The flow is stable at 100L/min by a built-in power source. The instrument is suitable for cleanliness testing of clean rooms, and performance testing of air filter and filter material in clean workshops, biological laboratories, pharmaceutical factories, inspection and testing institutions, bio-safety cabinet manufacturers, etc.

Standards

  • ISO 14644
  • ISO 21501-4:2018
  • GMP
  • GB/T 16292-2010
  • JIS B 9921:2010
  • GB/T 6167-2007
  • JJF 1190-2008

Get A Quote Now
In stock Categories : Portable Air particle counter

Features

  • Support 6-channel simultaneous measurement and record.
  • High precision sensor, minimum channel size is 0.3μm as a 100L/min particle counter.
  • Optional concentration or number mode with cumulative and/or differential counting.
  • Built-in clean room standards (GMP, ISO and so on), automated test reporting.
  • Support auto-print and manual print, optional print/export content.
  • Support presetting room, recipe and automatically set parameters according to selected class.
  • Three-level user management and audit trail to ensure data integrity.
  • Built-in HEPA filter for the exhaust.
  • Support export data via USB flash disk and printing by an embedded printer.
  • Built-in temperature, humidity, atmospheric pressure sensor.
  • A replaceable lithium battery for 4 hours continuous sampling after fully charged.
  • 7-inch touch color screen, friendly human-computer interaction.
  • Abundant optional accessories for compressed gas testing, HEPA filter scanning, recovery test.

Technical Specification

Parameters Range
Flow rate 100.0 L/min, maximum permissible error ±2%
Channel sizes 0.3, 0.5, 1.0, 3.0, 5.0, and 10.0 μm
Counting efficiency 0.3 μm: 50%±20%; >0.5 μm: 100%±10%
Error of particle size distribution 0.5 μm and 5 μm channels: ≤ ±30%
Repeatability ≤10 %FS
Concentration indication error 0.5 μm channel: ≤±30%FS
Concentration limit 17,000,000/m3, 10% coincidence loss
Zero count <1 count /5 min
Sampling mode Manual, automatic; cumulative and/or differential counting; Concentration mode, number mode; UCL calculation
Alarm Audible and visual alarm when exceeding threshold or low battery
Sampling delay, Sampling time 0~1000 min, 1 s~1000 min
Sampling volume 1.67 L~100000 L
Sampling interval, Sampling cycle 1s~1000 min, 1~1000 times
Preset room/location/recipe 50 rooms and each one maximum of 1000 locations, and 30 recipes
Exhaust filtration Built-in HEPA filter (>99.97%@0.3 μm)
Communication USB, WIFI, Bluetooth, RS485, BNC female
Environmental sensor Temperature, humidity, atmospheric pressure
Screen 7-inch touch color screen
Power supply AC (100-240) V, 50/60 Hz
Battery Removable lithium battery, continuous sampling ≥4h @25 °C, 101.325 kPa
Data storage capability 8GB, >100,000 groups
Noise ≤ 60 dB (A)
Working condition (10~40)°C, (20~85) % RH, no condensation
Storage condition (-20~50)°C, ≤95% RH
Dimension (L240×W265× H265) mm
Weight About 8.2kg
Power consumption ≤180 W
